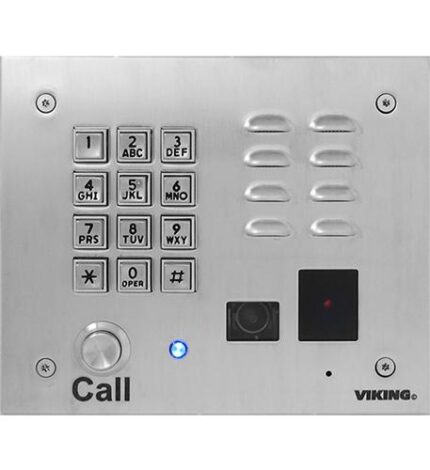

Viking K-1775-3 Proximity Card Reader with Video & Weather Protection

– Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation and EWP board protection
– Built-in high resolution analog NTSC color video camera with wide viewing angle, tilt/swivel adjustments, and operating temperature of -40°F to 140°F
– Audio and video transmission on one CAT5E cable (see page 6)
– Compatible with the following Viking Proximity Cards and Fobs: PRX-C, PRX-C-ISO and PRX-FOB (DOD 198)
– Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, stainless steel “Call” button, heavy duty metal keypad and T-10 Torx security screws, scratch resistant powder coating (K-1775-3-BN)
– Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate, mic and speaker gaskets. Weather Resisant powder paint (K-1775-3-BN)
– K-1775-3-EWP is designed to meet IP66 Ingress Protection Rating (see DOD 859 for more information)
– Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze powder paint
– Blue “in use” LED
– Telephone line powered
– Volume adjustments for microphone and speaker
– Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
– Selectable auto-answer feature for monitoring
– Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
