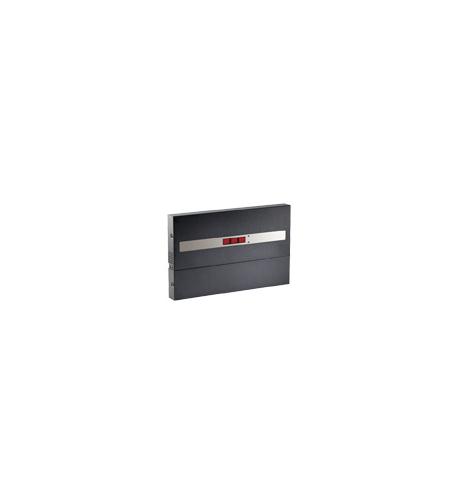

– Valcom GPS master clock
– 8 Channel technology
– Microprocessor based
– Immediate start up time
– High reliability
– In case of loss of signal, a temperature controlled time base is implemented allowing calibration of the time during variants in temperature
– Synchronized to UTC within 500 nanoseconds
– Interfaces directly with Valcom analog and digital clock systems
– Capable of working as a master for Valcom 2-wire digital systems
– Operation of auxiliary circuit for once-a-day relay closure with precise second resolution
– Field programmable via 2 switches
– 2 Levels of programming for technicians and end users
– 10 Year battery backup for timekeeping
– 1 Programmable signal duration per circuit (1 – 99 seconds), allowingthe user to interface with other systems
– Diagnostic mode allows the user to maintain and troubleshoot the clock system from the master clock
– LED display
– Valcom digital inputs and outputs

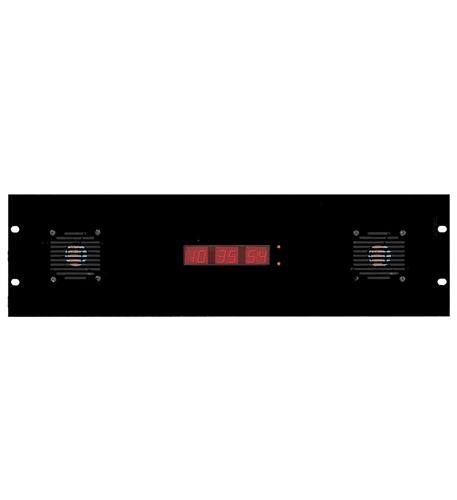

– Rack mountable
– FCC approved
– Madein the U.S.A.
– When used with Valcom wirelessclocks, add a V-WMCR wireless master clock repeater
– When used with Valcom wired clock (2-wire correction) add V-VCU 6-Amp 2-wire clock drivers asnecessary
– Includes 6 foot power cord, dome antenna, 75 foot RG-59 cable
