2.80” length
CyberData
CD-011528

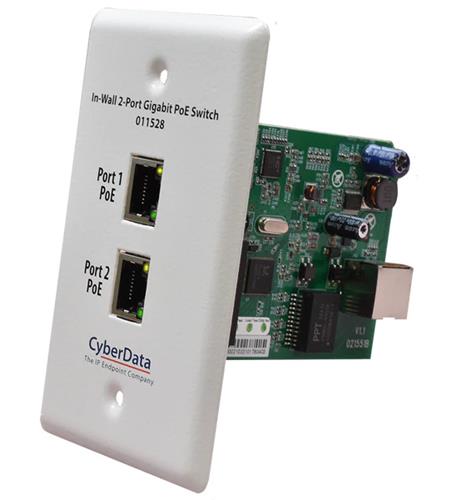

In-Wall 2-Port Gigabit PoE Switch
Out of stock
Free Delivery
Customer Support
Secure payment method
– Fully compliant to IEEE 802.3af/at standard
– 1 Power Device (PD) input port 802.3af or 802.3at
– 2 Power Source Equipment (PSE) output ports 802.3af or 802.3at (dependent on PD input)
– All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port’s individual connection
– Each port has auto MDI-X
– 802.11q VLAN tagging
– Automatic address learning, address aging and address migration
– Supports 9216-byte jumbo frame length
– Link/Status and connection speed LEDs
– No punch down tool required; RJ45 connector input port
– 1 Power Device (PD) input port 802.3af or 802.3at
– 2 Power Source Equipment (PSE) output ports 802.3af or 802.3at (dependent on PD input)
– All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port’s individual connection
– Each port has auto MDI-X
– 802.11q VLAN tagging
– Automatic address learning, address aging and address migration
– Supports 9216-byte jumbo frame length
– Link/Status and connection speed LEDs
– No punch down tool required; RJ45 connector input port
Features
Color: White
Backplane Bandwidth – Gbps: –
Max PoE Power Consumption – Watts: –
Number SFP Ports: –
Packet Buffer Size – Kb: –
Port Type: Gigabit Ethernet
Switching Capacity – Gbps: –
Number PoE Ports: 2
PoE Support Type: PoE
Total Number of Ports: 2
Backplane Bandwidth – Gbps: –
Max PoE Power Consumption – Watts: –
Number SFP Ports: –
Packet Buffer Size – Kb: –
Port Type: Gigabit Ethernet
Switching Capacity – Gbps: –
Number PoE Ports: 2
PoE Support Type: PoE
Total Number of Ports: 2
Environmental Features
Energy Star Qualified:
Recycled Packaging:
Recycled Packaging:
Other Features
RoHS Compliant:
Country of Origin: USA
Type of Packaging: Brown Box
Warranty: 2 Year
Website Link: www.cyberdata.net
Country of Origin: USA
Type of Packaging: Brown Box
Warranty: 2 Year
Website Link: www.cyberdata.net
package dimensions:
4.50” Height
2.00 lbs normal weight
0.35 lbs dimensional air weight
0.30 lbs dimensional ground weight
3.90” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
3.90” Width
4.50” height
2.80” length
2.00 lbs normal weight
0.35 lbs dimensional air weight
0.30 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
