8.00” length
Netgear
606449152388
NET-MS510TXUP-100NAS

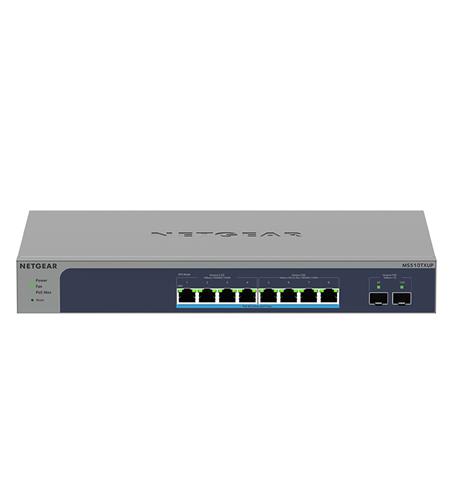

8 Port MG 10G PoE plus Smart Switch
Out of stock
Free Delivery
Customer Support
Secure payment method
– Multi-gigabit copper ports : 4 (1G/2.5G)
– Multi-gigabit/10 Gigabit copper ports : 4 (1G/2.5G/5G/10G)
– SFP+ ports : 2
– Number of PoE++ (802.3bt) ports : 8
– Total PoE Power budget : 295 Watts
– Uninterrupted PoE : Yes
– Max MAC entries : 32K
– Buffer size : 16Mbit
– VLAN (Number Supported) : 256
– VLAN routing : Yes
– Dynamic VLAN assignment : Yes
– MLD Snooping : Yes
– Static route : Yes (32)
– Host ARP table : 512 ARP
– EEE : Yes
– DoS Prevention : Yes
– Internal/External PSU : Internal
– Max power (worst case, all ports used, line-rate traffic) : 380W
– Fans : 3
– Acoustic Noise Level @25C : 33.0 dBA
– Operating Temperature : 0° to 50° C (32 to 122F)
– MTBF : 848,553 hrs (96.9 yrs)
– Multi-gigabit/10 Gigabit copper ports : 4 (1G/2.5G/5G/10G)
– SFP+ ports : 2
– Number of PoE++ (802.3bt) ports : 8
– Total PoE Power budget : 295 Watts
– Uninterrupted PoE : Yes
– Max MAC entries : 32K
– Buffer size : 16Mbit
– VLAN (Number Supported) : 256
– VLAN routing : Yes
– Dynamic VLAN assignment : Yes
– MLD Snooping : Yes
– Static route : Yes (32)
– Host ARP table : 512 ARP
– EEE : Yes
– DoS Prevention : Yes
– Internal/External PSU : Internal
– Max power (worst case, all ports used, line-rate traffic) : 380W
– Fans : 3
– Acoustic Noise Level @25C : 33.0 dBA
– Operating Temperature : 0° to 50° C (32 to 122F)
– MTBF : 848,553 hrs (96.9 yrs)
Features
Color: Blue
Backplane Bandwidth – Gbps: –
Packet Buffer Size – Kb: –
Port Type: Gigabit Ethernet
Switching Capacity – Gbps: –
Number SFP Ports: 2
PoE Support Type: PoE+
Total Number of Ports: 10
Managed: Yes
Max PoE Power Consumption – Watts: 295
Number PoE Ports: 9
Backplane Bandwidth – Gbps: –
Packet Buffer Size – Kb: –
Port Type: Gigabit Ethernet
Switching Capacity – Gbps: –
Number SFP Ports: 2
PoE Support Type: PoE+
Total Number of Ports: 10
Managed: Yes
Max PoE Power Consumption – Watts: 295
Number PoE Ports: 9
Environmental Features
Energy Star Qualified:
Recycled Packaging:
Recycled Packaging:
Other Features
RoHS Compliant:
Country of Origin: China
Type of Packaging: Retail Box
Warranty: Lifetime
Website Link: www.netgear.com
Country of Origin: China
Type of Packaging: Retail Box
Warranty: Lifetime
Website Link: www.netgear.com
package dimensions:
3.00” Height
7.80 lbs normal weight
1.73 lbs dimensional air weight
1.45 lbs dimensional ground weight
10.00” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
10.00” Width
3.00” height
8.00” length
7.80 lbs normal weight
1.73 lbs dimensional air weight
1.45 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
