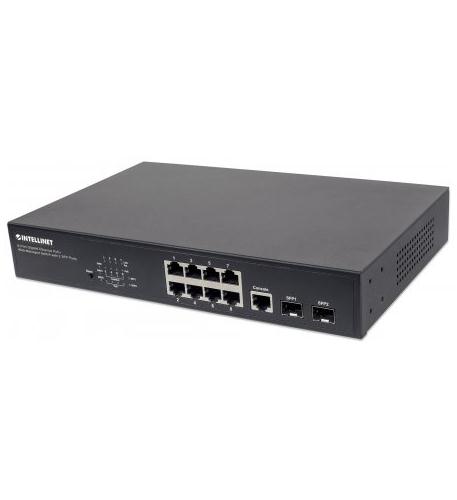

Provides power and data connection for up to eight PoE network devices
– Save time and money by delivering data and power via existing network cables
– For use on desktop or mounted in standard 19″ rack
– 10/100/1000 auto-sensing ports automatically detect optimal network speeds
– Two small form-factor pluggable GBIC module slots (SFP)
– IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
– Power output up to 30 watts per port*
– PoE power budget of 140 watts
– PoE surge protection (4 kV) for all RJ45 ports
– 20 Gbps switch fabric
– Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
– Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
– Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
– Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
– All RJ45 ports with Auto-MDIX (auto uplink) support
– Configuration via Web browser, Telnet or SSH
– Supports SNMP management
– PoE Management – PoE port settings, priority and power-on delay
– IGMP Snooping for multicast filtering
– SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
– Supports VLAN (tag-based and port-based)
– Supports link aggregation (trunking)
– Supports port mirroring
– QoS (Quality of Service) bandwidth management
– Broadcast storm control with multicast packet rate settings
– Store and forward switching architecture
– Supports jumbo frames up to 9 kBytes
– Supports Rapid Spanning Tree/Spanning Tree protocol
– IEEE 802.3x flow control for full duplex
– Supports 8k MAC address entries
– 512 kBytes buffer memory
– High-efficiency fan delivers quiet, reliable cooling
– Desktop-size metal case
– Includes 19″ rackmount brackets
