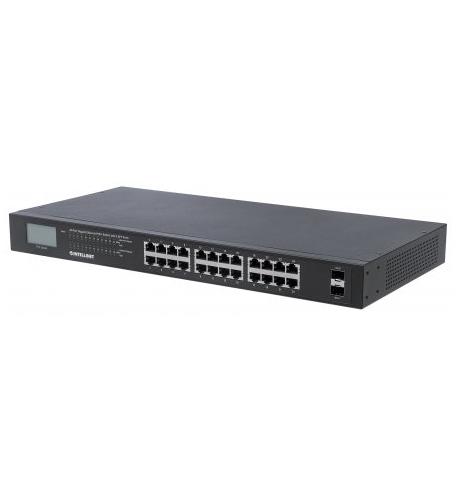

– Provides power and data connection for up to 24 PoE network devices
– Saves time and money by delivering data and power via existing network cables
– 10/100/1000 auto-sensing ports automatically detect optimal network speeds
– LCD display for easy access to real-time PoE status monitoring
– IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
– Power output up to 30 watts per port
– PoE power budget of 370 watts
– Two small form-factor pluggable GBIC module slots (SFP)
– Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
– Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
– Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
– Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
– All RJ45 ports with Auto-MDIX (auto uplink) support
– Store and forward switching architecture
– IEEE 802.3x flow control for full duplex
– Supports up to 8192 MAC address entries
– 512 kBytes buffer memory
– Two high-volume cooling fans ensure perfect ventilation
– Includes 19″ rackmount brackets
