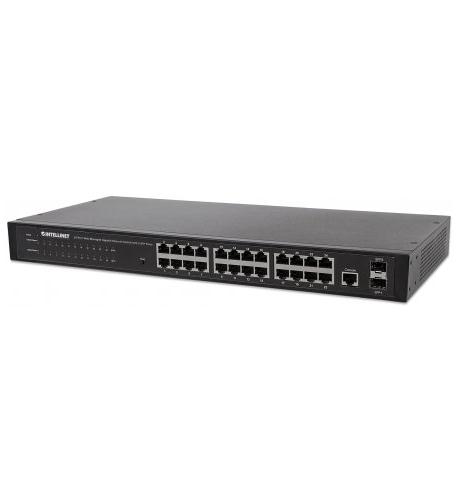

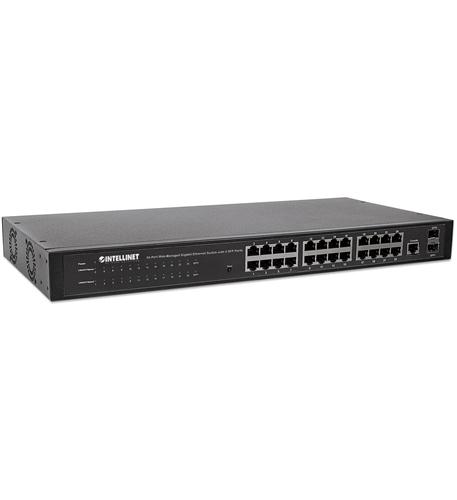

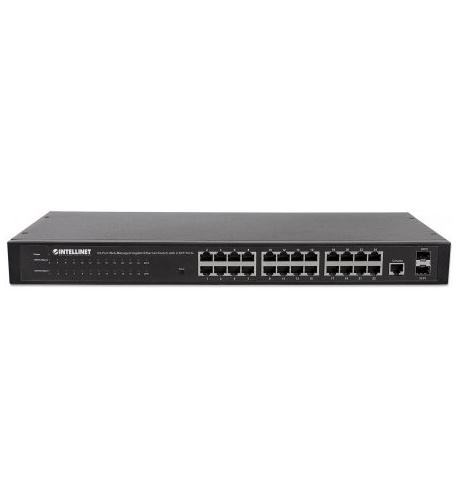

24 Port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports
This 24 + 2 Layer 2 Gigabit Switch is a high-performance SNMP-managed device that provides users with 24 10/100/1000 Mbps Ethernet and 2 additional Gigabit SFP ports. The Web/SNMP management provides remote control capability providing flexible network management and monitoring options. Whether managed through an “in-band” SNMP management station or an Internet Web browser, the Intellinet 560917 Gigabit switch facilitates network management and problem diagnosis.
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Complies with the IEEE 802.3az (Energy Efficient EEE) specification
Web-or Telnet-based configuration
SNMP V1, V2 with RMON groups 1, 2, 3, and 9
VLAN (Tag-based and port-based)
802.1x authentifcation and IP/MAC based Access Control Lists (ACL)
Link Aggregation/ACP (Port Trunking)
IGMP Snooping
Bandwidth control per port
Port Mirroring
Broadcast storm control with multicast packet rate settings
Supports jumbo frames up to 9kBytes
Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Fanless design ideal for silent operation
Full/half duplex operation
IEEE 802.3x flow control for full duplex
8K MAC Address entries
Packet Filter/Forwarding Rate: 1,488,000 pps (1000Mbps), 148,900 pps (100Mbps), 14,880 pps (10Mbps)
Rackmount
Packet Buffer Memory: 512kBytes
Total Ports: 26
Gigabit Ethernet Ports: 24
SFP Ports: 2
QoS: port-based, 802.1p, DSCP
IEEE Protocols: 802.1d, 802,1p, 802.1q, 802.1s, 802.3ad, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x
