– Mobile: 4G/LTE (Cat 4), 3G, 2G
– CPU: Mediatek, 580 MHz, MIPS 24KEc
– Storage: 16 MB Flash
– Memory: 128 MB RAM
– Powering: option 4pin power socket, 9-30 VDC
– SIM 1 x External SIM holder (2FF)

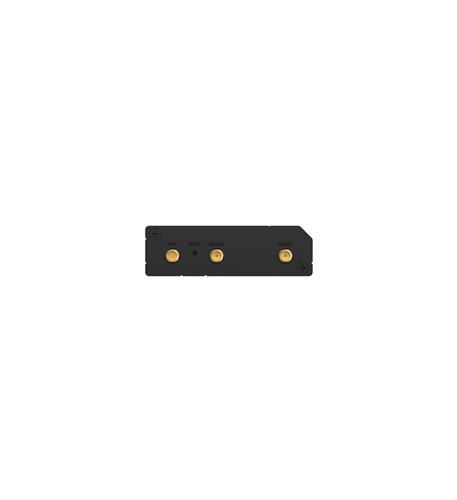

– Antenna connectors: 2 x SMA for mobile, 1 x RP-SMA for WiFi
– Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
– WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
– Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
– Status LEDs: 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
– Operating temperature: -40 °C to 75 °C
– Housing Aluminium housing with DIN rail mounting option, plastic panels
– Operating system: RutOS (OpenWrt based Linux OS)
– Mobile features: Auto APN, Band lock
– Network protocols: TCP, UDP, IPv4, IPV6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLV3, TLS 1.3, ARP, PPP, PPPOE, DHCP, Telnet
– Network: Failover (Network backup), VLAN, QoS, Load Balancing
– Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
– VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
– Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
– Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
– Cloud solutions: RMS, FOTA, Azure loT Hub, Cloud of Things, Cumulocity, ThingWorx
– SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
– Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
