20.00” length
ICC
633758034999
ICC-ICMPP24T2C
PATCH PANEL, TELCO, 8P2C, 24-PORT, 1 RM
9 in stock
Free Delivery
Customer Support
Secure payment method

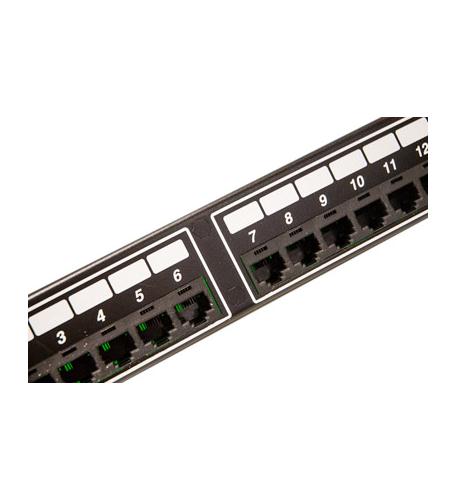

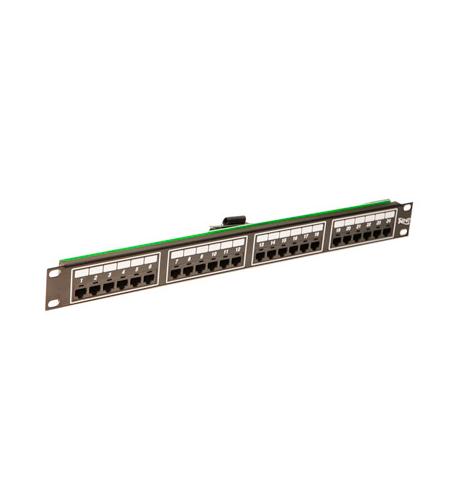

– 24 Port 8P2C Rack Mount Telco Patch Panel
– Rack mounted 8-position 2-conductor Telco patch panel for voice connectivity applications
– Integrated with 1 male 50-pin telco connector
– Designed to fit all standard 19” racks and cabinets
– 1 rack mount space (RMS)
– Used with standard telco line cords
– UL listed
– Rack mounted 8-position 2-conductor Telco patch panel for voice connectivity applications
– Integrated with 1 male 50-pin telco connector
– Designed to fit all standard 19” racks and cabinets
– 1 rack mount space (RMS)
– Used with standard telco line cords
– UL listed
Features
Color: Black
Patch Panels: Horizontal
Rack Space: 1U
Number of Ports: 24

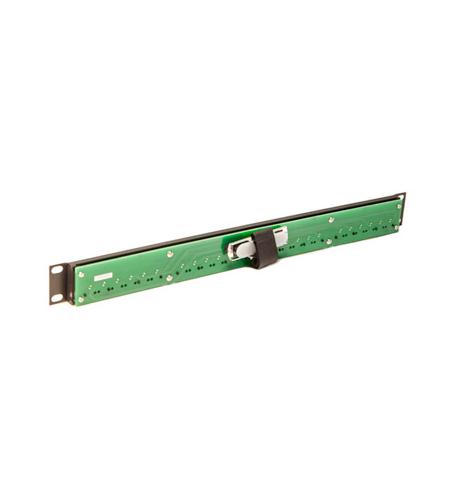

Rear Port Connection: Male Telco
Front Port Connection: RJ45
Patch Panels: Horizontal
Rack Space: 1U
Number of Ports: 24
Rear Port Connection: Male Telco
Front Port Connection: RJ45
Environmental Features
Energy Star Qualified: No
Other Features
Country of Origin: China
RoHS Compliant: Yes
Type of Packaging: Brown Box
Warranty: 3 Years
Website Link: http://www.icc.com/
RoHS Compliant: Yes
Type of Packaging: Brown Box
Warranty: 3 Years
Website Link: http://www.icc.com/
package dimensions:
2.50” Height
1.25 lbs normal weight
1.08 lbs dimensional air weight
0.90 lbs dimensional ground weight
3.00” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
3.00” Width
2.50” height
20.00” length
1.25 lbs normal weight
1.08 lbs dimensional air weight
0.90 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
