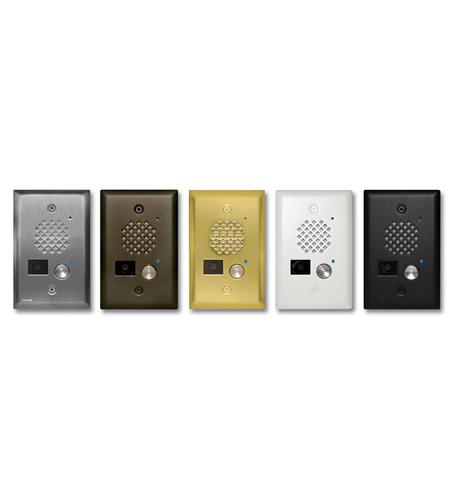

– Viking video entry phone in Stainless Steel
– E-50 Series video entry phones are compact, weather and vandal resistant speaker phones designed to providetwo-way handsfree audio communication and color composite video of who is at your door or gate
– Compact size allows it to be mounted in a standardsingle gang electrical box
– Replacement E-50 faceplates (PNL50) can be purchased separately – Can share a single phone line with house or small business telephones when used with a Viking model C-200 or C-2000A Entry Phone controller
– Can alsobe connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with aViking model K-1900-5 auto dialer
– Features a built-in high resolution color video camera, microphone and speaker volume controls, selectable autoanswer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed
– Door or gate communication, business delivery entrances
– Use with a Viking C-200to control one E-50 on a single phone line
– Use with a Viking C-2000A to control 1 to 4 E-50’s and door/gate control on a single phone line
– Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
– Use with a Viking K-1900-5 for automatic speed dialing on telephone lines or analog PABX/KSU stationports
– Use on an analog PABX station port with programmable ringdown capability
– Built-in high resolution color video camera with wide viewing
– Tilt/swivel adjustments
– Wide operating temperature of -30° F to 150° F
– Audio and video transmission on one CAT5E cable
– Compact size: front panel is the size of a typical single gang midsize wall plate
– Mounting: flush mount ina single gang (1.7″ deep x 2.1″ wide min) electrical box or surface mount in a Viking model VE-3×5 (not included)
– Weather resistant features: mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware
– Vandal resistant features: 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, impact and scratch resistant camera lens, and hex drive mounting screws
– Microphone and speaker volume controls
-Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
– Selectable auto answer feature for monitoring
– Programmable VOX (mic/speaker)switching speed
– Power: telephone line powered (18 VDC/20mA minimum)
– Dimensions: faceplate: 123.8mm x 79.4mm x 4.6mm (4.875″ x 3.125″ x 0.18″), phone board: 71mm x 46mm x 42mm (2.8″ x 1.8″ x1.65″)
– Speaker volume: approximately 62db maximum @ 1m
– Ring voltage: 25V AC RMS minimum (for auto answer)
– CPC disconnect time: 300ms minimum
– Brushed stainless steel

VKE50SS
