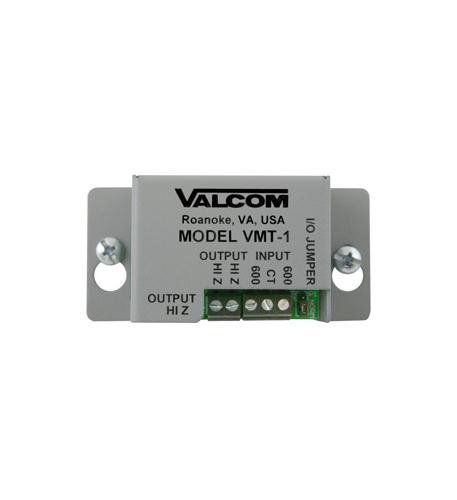

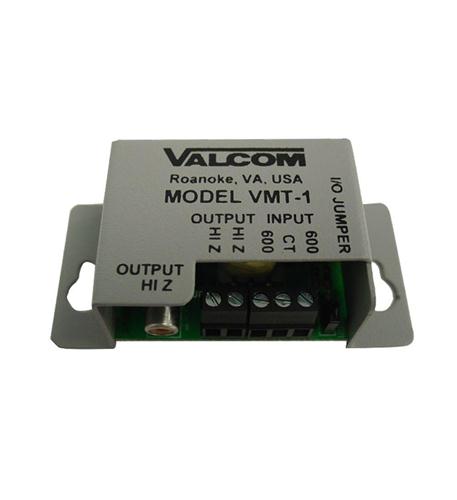

– Matching Transformer Line Input
– Used as an input-matching transformer, it connects telephone systems to most public address amplifiers, for telephone paging. In addition it functions as an output-matching transformer to feed program material over a 600-ohm telephone line for “music-on-hold”. It is compatible with any amplifier having a 25V output connection.
– Hi-Z, 10k-ohm primary impedance
– Lo-Z, 600-ohm secondary impedance, balanced with center tap
– Matches high-to-low impedance or low-to-high impedance
– Adapts line level signals to microphone inputs
– Phono jack or screw terminatls for Hi-Z side
– Screw terminals for Lo-Z side
– Steel enclosure w/mounting ears allows easy mounting
