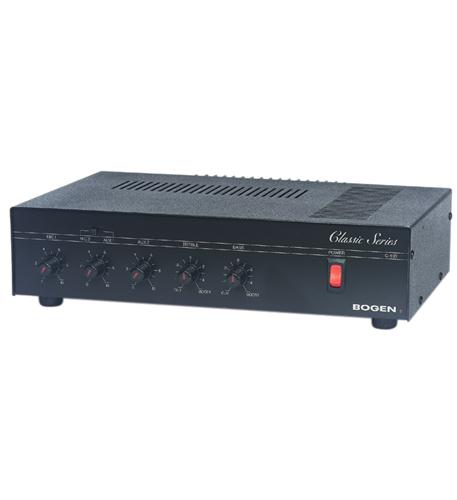

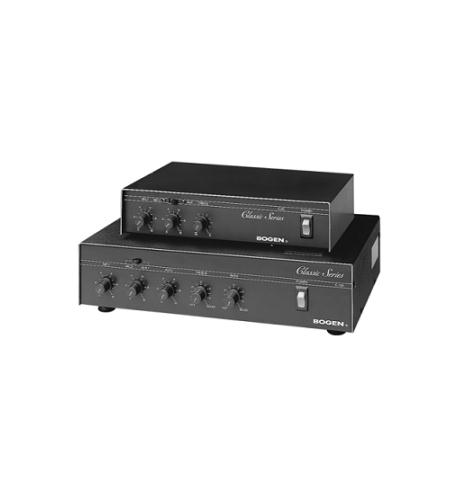

– Bogen 100 watt public address mixer amplifier
– Provides mixing of microphones, telephone and auxiliary sources
– 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
– Each input controlled by an independent volume control
– Treble and bass control
– AUX muting by external contact closure for push-to-talk microphones
– TEL input for telephone paging applications
– TEL input voice-activated (VOX) mute over AUX input
– Variable threshold for TEL input voice-activated AUX mute
– Audio output for tape recorder or booster amplifier
– Outputs for 4-ohm (direct), and 16-ohm, 25V and 70V speaker systems (transformer coupled)
– Output jack to connect a tape recorder or booster amplifier
– Output jack to connect a general purpose 600-ohm matching transformer (model WMT1A)
– Thermal protection and electronic shutdown
– Rack mountable with accessory mounting kit (RPK50)
– UL and CSA listed
BGC100
