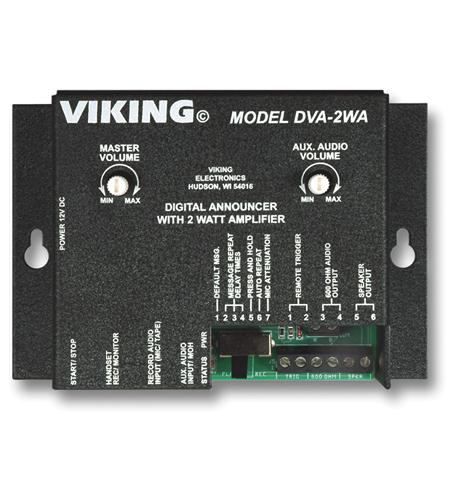

– Digital announcer/recorder
– Built in 2 watt amplifier to connect directly to speakers
– Designed to providemusic and promotion on hold by using playback in a continuous loop or alternating between promotions and an auxiliary music source at 2 second to 30 minute intervals
– Any number of multiple messages may be recorded
– Announcer comes with four professionally pre-recorded promotions on hold pacifier messages, as well as, power supply and cabling for an easy plug and play installation
– Output may be connected directly to loudspeakers with messages repeated in timed intervals or played at the push of a button for museum displays, information booths, point of interest locations, etc.
– 7.5 minutes of user recordable memory (select fromuser recorded messages or four pre-recorded on-hold pacifier messages)
– Three playback options:on demand, continuous, and timed intervals
– Non-volatile memory (no batteries required)
– Record from electret mic, carbon handset, tape, CD, PC sound card or any line level device
– 600 ohm audio output for high wattage amplifiers
– Multiple message capabilities (total number of messages only limited to maximum record time)
– AGC (Automatic Gain Control) for trouble free recording
– Auxiliary audio (MOH) input for between message background music
– Remote trigger input for on-demand playback from a remote contact closure
– Press and hold play mode
– Status LED forrecord and playback indication
– Master and auxiliary input volume controls
– I.O. communications port (allows only one DVA-2WA to announce at a time)
– Power: 120V AC/12V DC, 500mA adapter provided
– Dimensions: 133mm x 89mm x 44mm (5.25″ x 3.5″ x 1.75″)
– Shipping weight: 1.0 kg (2.2 lbs)
– Environmental: 0*C to 32*C (32*F to 90*F) with 5% to 95% non-condensing humidity
– Frequency response: 100-3.4KHz
– Sampling rate: 64K (equivalent)
– User message length: 7.5 minutes maximum
– Recording audio input level: 30mV – 1.0V RMS (AGC range), 600 Ohm audio output level: 0.3V RMS maximum (across a 600 ohm load)
– Speaker output power: 2 watt peak
– Connections: (1) 6-position cage clamp terminal block, (3) 3mm (1/8″) audio jacks, (1) handset jack
– Pre-recorded pacifier message length: 30 seconds total
– Minimum speaker impedance: 2.66 Ohms: (3) 8-Ohm speakers
