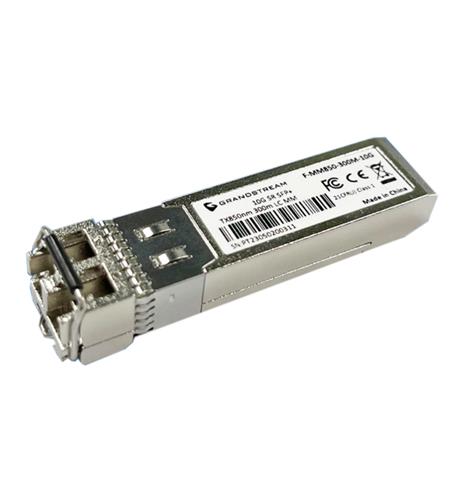

– Hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
– Fiber Mode: Single-Mode Fiber
– Connector Type: Duplex LC
– DDM: 10Gbps SFP+
– Nominal Wavelength: 1310nm
– Data Rate: 10Gbps SFP+
– Max Power Consumption: 1W
– Transfer Distance: 10km
– TX Power: -8.2 to 0.5dBm, ±3dB
– RX Power: -14.4 to 0.5dBm, ±3dB
– Operation Voltage: 3.3V±0.3V
– Environmental: Operation: 0? to 70?, humidity: 5% to 85% Storage: -40? to 85?
– Unit Weight: 18.50g
– Standards: SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
