8.00” length
Intellinet
766623506519
ITL-506519

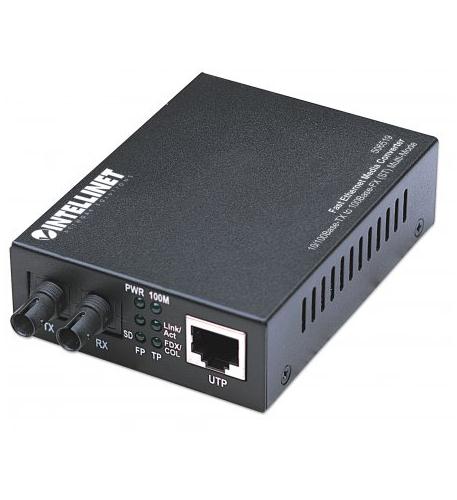

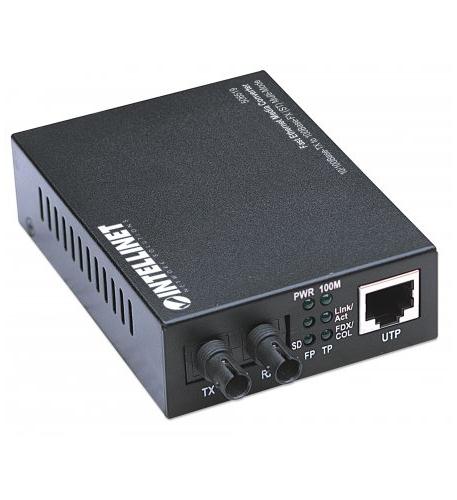

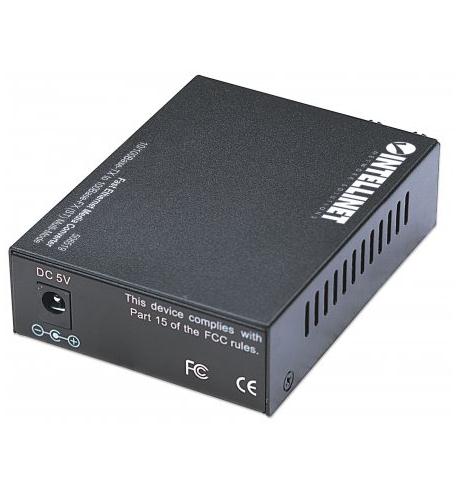

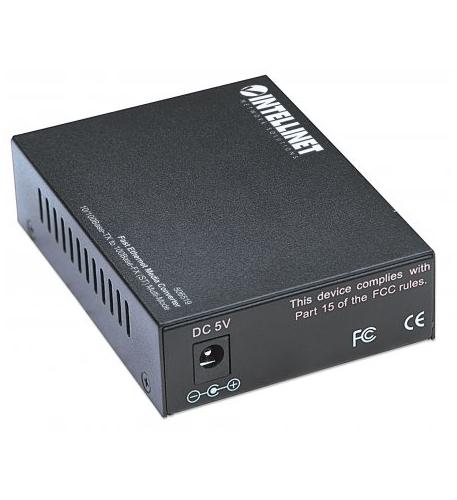

Multi-Mode ST Fast Eth. Media Converter
Out of stock
Free Delivery
Customer Support
Secure payment method
Designed to offer migration from copper-based Ethernet to Fiber Ethernet
Data transfer rate: 100 Mbps

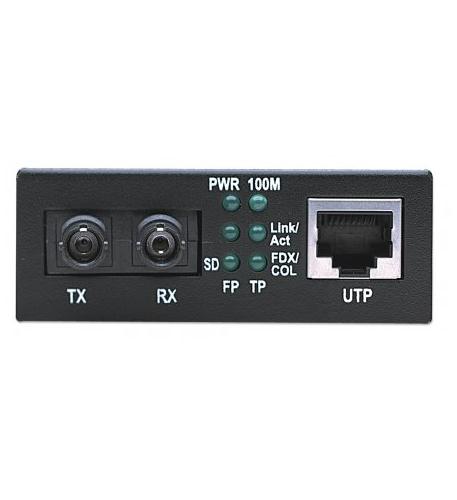

One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft.
RJ45 port with Auto MDI/MDI-X support and auto-negotiation
One 100Base-FX multi-mode Fiber ST duplex port
Fiber distance support: up to 2 km / 1.24 mi (62.5/125 or 50/125 µm cable)
Wavelength: 1310 nm
Flow control
Status LEDs for power and Link/TX for both ports

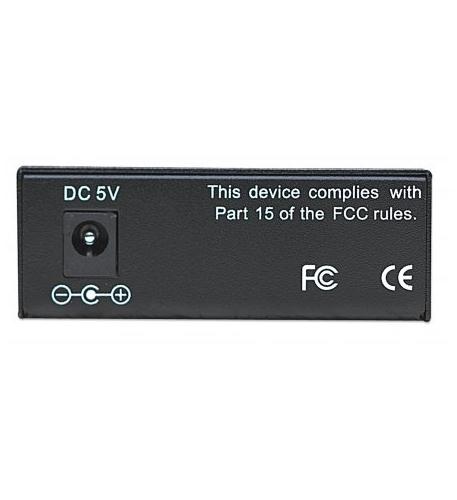

External power adapter, 5 V DC
Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
Data transfer rate: 100 Mbps
One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft.
RJ45 port with Auto MDI/MDI-X support and auto-negotiation
One 100Base-FX multi-mode Fiber ST duplex port
Fiber distance support: up to 2 km / 1.24 mi (62.5/125 or 50/125 µm cable)
Wavelength: 1310 nm
Flow control
Status LEDs for power and Link/TX for both ports
External power adapter, 5 V DC
Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
Features
Color: Black
Application: Fiber Optic
Adapters and Couplers: Yes
Application: Fiber Optic
Adapters and Couplers: Yes
Environmental Features
Energy Star Qualified: No
Recycled Packaging: No
Recycled Packaging: No
Other Features
RoHS Compliant: No
Warranty: 3 Year
Country of Origin: Taiwan
Website Link: http://www.intellinet-network.com/
Type of Packaging: Retail Package
Warranty: 3 Year
Country of Origin: Taiwan
Website Link: http://www.intellinet-network.com/
Type of Packaging: Retail Package
package dimensions:
4.00” Height
1.10 lbs normal weight
1.84 lbs dimensional air weight
1.54 lbs dimensional ground weight
8.00” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
8.00” Width
4.00” height
8.00” length
1.10 lbs normal weight
1.84 lbs dimensional air weight
1.54 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
