8.00” length
ITW Linx
790237011091
ITW-CAT6-LAN
Protect 4 pair, CAT6 rated LAN
$ 170
6 in stock
Free Delivery
Customer Support
Secure payment method

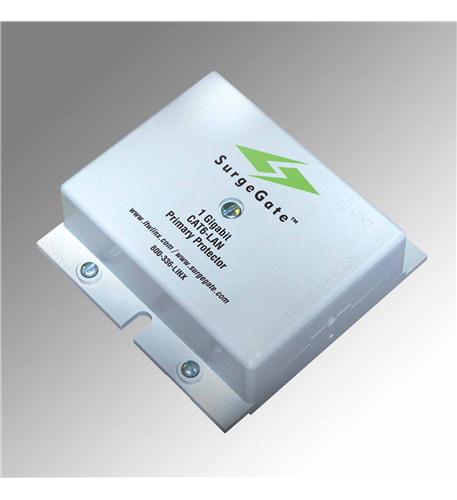

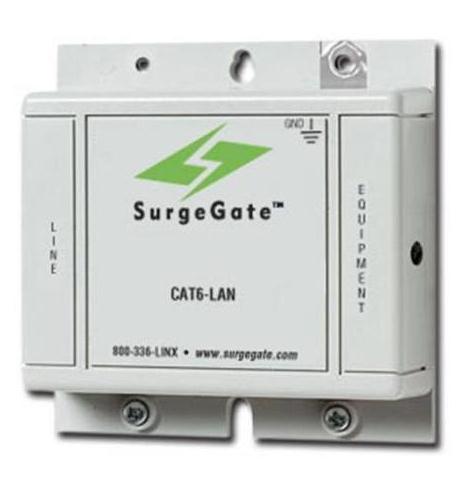

– Category 6 Solid-State Building Entrance Protector
– Protects high-performance 4-pair Cat6 outside plant cables as well as Cat6 UTP cables for LAN/Data applications (16V). Using 110 punchdown in/out.
– Recommended Grounding Impedance: <.5 Ohm
– Signal Perfect Circuitry
– Fused
– Clamping Level: 16V
– Response Time: 1-5 nanoseconds
– Capacitance: <5pF
– Wires Protected: 4-pairs
– Expandable System Protection: SurgeGate Modules can be attached to one another to expand system protection
– Protects high-performance 4-pair Cat6 outside plant cables as well as Cat6 UTP cables for LAN/Data applications (16V). Using 110 punchdown in/out.
– Recommended Grounding Impedance: <.5 Ohm
– Signal Perfect Circuitry
– Fused
– Clamping Level: 16V
– Response Time: 1-5 nanoseconds
– Capacitance: <5pF
– Wires Protected: 4-pairs
– Expandable System Protection: SurgeGate Modules can be attached to one another to expand system protection
Features
Surge Protection for Wiring Blocks: Yes
Environmental Features
Energy Star Qualified: No
Recycled Packaging: No
Recycled Packaging: No
Other Features
Type of Packaging: Retail Box
RoHS Compliant: No
Country of Origin: USA
Warranty: Limited Lifetime
Website Link: www.itwlinx.com
RoHS Compliant: No
Country of Origin: USA
Warranty: Limited Lifetime
Website Link: www.itwlinx.com
package dimensions:
1.75” Height
0.70 lbs normal weight
0.53 lbs dimensional air weight
0.44 lbs dimensional ground weight
5.25” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
5.25” Width
1.75” height
8.00” length
0.70 lbs normal weight
0.53 lbs dimensional air weight
0.44 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
