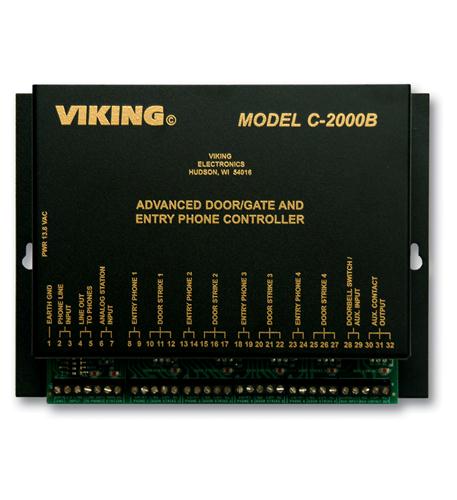

Viking C-2000B Door Entry Controller for 1-4 Phones

– Viking advanced door/gate entry phone controller
– Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system
– Use with any analog touch tone phone
– Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
– Up to 6 different keyless entry codes / “one time use” keyless entry codes per entrance
– Up to 6 master keyless entry codes for use at any entrance
– Analog station mode allows the C-2000B to connect to an unused PABX station port
– Optional “Privacy Number” allows only selected visitors to call from an entry phone
– Provides “Caller ID” and “Call Waiting Caller ID”
– Produces “Call Waiting” tones
– Lighted doorbell switch input to activate entry phone call
– One set of normally open and normally closed contacts available for each entry phone
– Programmable contact activation time
– Auxiliary input to activate timed auxiliary contacts
– Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
– Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
– Relay Contacts: 5A @ 30VDC/250VAC
– Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
– Talk Battery: 40V DC
– REN: 0.1A
– Connections: (30) cage clamp screw terminals
VKC2000B
