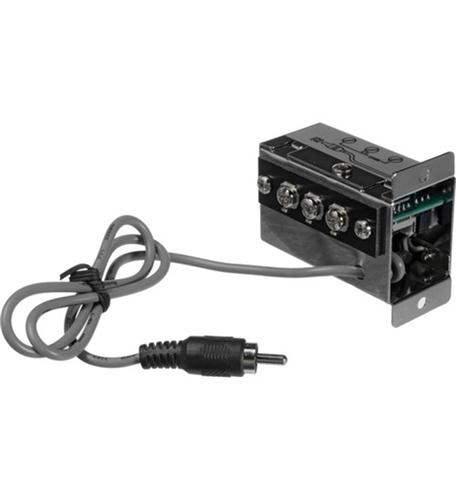

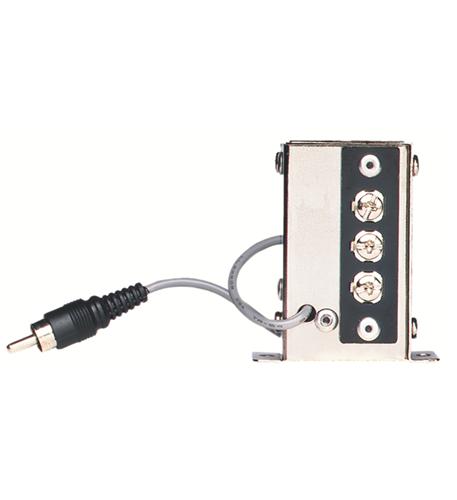

Bogen BG-WMT1AS Matching Transformer for Speaker Adaptation

– Hi-Z, 10k-ohm primary impedance
– Lo-Z, 600-ohm secondary impedance, balanced with center tap
– Matches high-to-low impedance or low-to-high impedance
– Adapts line-level signals to microphone inputs
– RCA connector for Hi-Z side
– Screw terminals for Lo-Z side
– Small steel enclosure with mounting ears allows easy mounting
– No wiring or soldering required
– May be used to provide a 600-ohm output from a Bogen mixer/pre-amplifier
– Speaker-level signals to the AUX input level of an amplifier
