8.00” length
ITW Linx
790237001061
ITW-MCO4-110

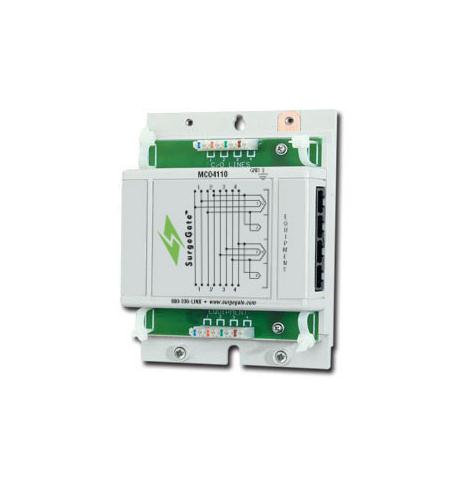

TOWERMAX CO4 110 CONNECTORS
$ 94
Out of stock
Free Delivery
Customer Support
Secure payment method
– Analog Station Set and Central Office Line Protector
– Protects up to 8-wires (4-pairs) using 110 punchdown block on the input and 110 punchdown block or 4 RJ11 or 2 RJ45 on output.
– Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
– Expandable modular system
– Applications: Analog and Central Office lines for PBX or KSU
– Agency Approval: UL 497A (Secondary)
– Grounding Requirements: Uses Electrical AC Ground
– Recommended Grounding Impedance: <0.5Ohm
– Signal Perfect Circuitry
– Auto-Resetting PTCs: 160 mA (8-10 Ohms)
– Clamping Level: 260V
– Response Time: 1-5 Nanoseconds
– Capacitance: <50pF
– Suppression Modes: Metallic and Longitudinal
– Wires Protected: 50-wires (25-pairs)
– Termination Type: 110 punchdown input, RJ11/RJ45 or 110 punchdown output
– Protects up to 8-wires (4-pairs) using 110 punchdown block on the input and 110 punchdown block or 4 RJ11 or 2 RJ45 on output.
– Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
– Expandable modular system
– Applications: Analog and Central Office lines for PBX or KSU
– Agency Approval: UL 497A (Secondary)
– Grounding Requirements: Uses Electrical AC Ground
– Recommended Grounding Impedance: <0.5Ohm
– Signal Perfect Circuitry
– Auto-Resetting PTCs: 160 mA (8-10 Ohms)
– Clamping Level: 260V
– Response Time: 1-5 Nanoseconds
– Capacitance: <50pF
– Suppression Modes: Metallic and Longitudinal
– Wires Protected: 50-wires (25-pairs)
– Termination Type: 110 punchdown input, RJ11/RJ45 or 110 punchdown output
Features
Color: White
Surge Protection for Amphenol/Telco: Yes
Surge Protection for Amphenol/Telco: Yes
Environmental Features
Energy Star Qualified: No
Other Features
Type of Packaging: Retail Box
RoHS Compliant: No
Country of Origin: USA
Warranty: Lifetime
Website Link: http://itwlinx.com/
RoHS Compliant: No
Country of Origin: USA
Warranty: Lifetime
Website Link: http://itwlinx.com/
package dimensions:
1.50” Height
1.20 lbs normal weight
0.45 lbs dimensional air weight
0.38 lbs dimensional ground weight
5.25” Width
Note: The heaviest weight value will be used in calculating shipping charges
package dimensions:
5.25” Width
1.50” height
8.00” length
1.20 lbs normal weight
0.45 lbs dimensional air weight
0.38 lbs dimensional ground weight
Note: The heaviest weight value will be used in calculating shipping charges
