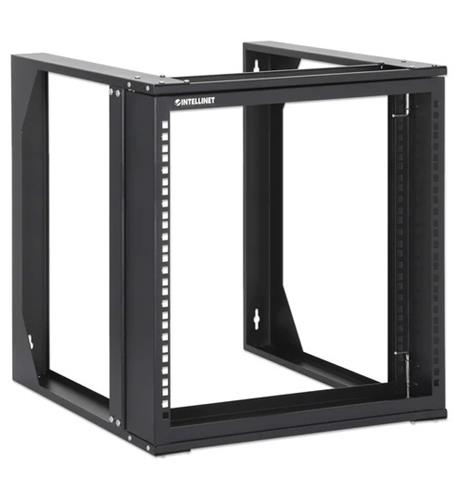

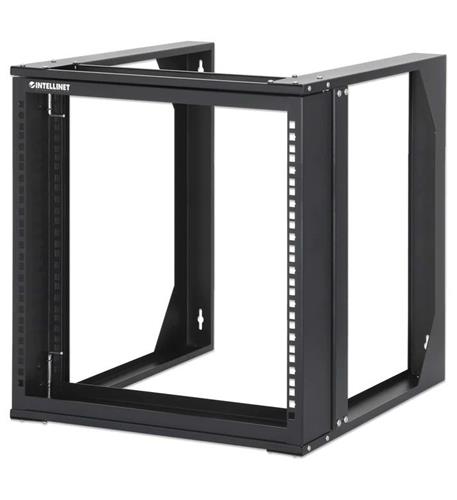

– 19″ Wall Mount Open Frame Network Rack, 9U, Front-hinged Swing Frame
– Open frame for easy access to equipment from all sides and for maximum airflow with efficient heat dissipation
– Front-hinged design that lets the frame swing open for even easier access to panels
– Wall-mountable for network areas with limited floor space (wall-mounting hardware not included)
– Integrity/security bars for added stability and resistance to tampering
– Simple and cost-effective solution; great for testing IT equipment and for secure environments that do not require a lockable network cabinet
– Sturdy, high-quality, cold-rolled SPCC steel construction with antistatic powder coating
– Two posts with front-mounting rails and reversible swing frame
– Maximum load capacity of 30 kg (66 lbs.) with frame closed or 10 kg (22 lbs.) with frame opened
– Usable installation depth: 400 mm (15.75 in.)
– IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment
– Ships flat-packed to save space and freight costs
– Includes 19″ mounting material with 20 cage nut sets
– Frame can be opened on the left or right to swing as required
