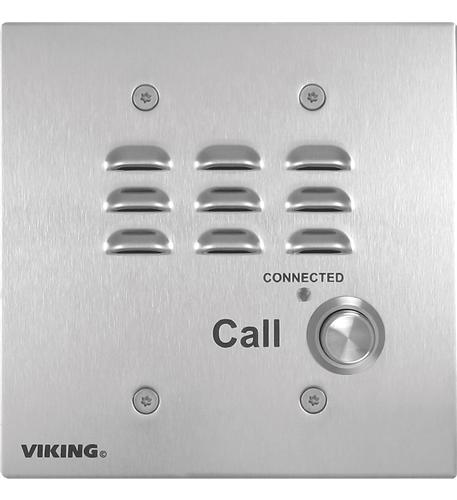

Viking E-32-IP EWP SIP Intercom with 2 Amp Relay & LED

– 2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
– Blue “Call Connected” LED indicator
– SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
– PoE powered (class 1, <4 Watts)
– Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
– VoIP audio detection eliminates the need for “Push to Talk” mode
– Handsfree operation
– T-10 Torx security screws for added security
– Laser etched graphics
– Programmable to dial up to 5 numbers
– Cycles through backup phone numbers on busy or ring-no-answer
– Hangs up on busy signal, time-out or touch tone command
– Programming software included
– Network downloadable firmware
– Remotely programmable
– Diagnostics for testing mic, speaker, and relay
– Flush mounts with a double gang electrical box
– Extended temperature range: -40°F to 140°F (-40°C to 60°C)
– Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
– Power: PoE class 1 (<4 Watts)
– Maximum Sound Pressure: 90dB SPL @ 1m
– Dimensions: 5.0? x 5.0? x 2.25? (127mm x 127mm x 57mm)
– Shipping Weight: 2.1 lbs (1.0 kg)
– Operating Temperature: -40°F to 140°F (-40°C to 60°C)
– Humidity: Up to 100%
– Material: 14 gauge 316 stainless steel with #4 brushed finish
– SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
– Audio Codecs: G711u, G711a, G722
– Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
– Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
