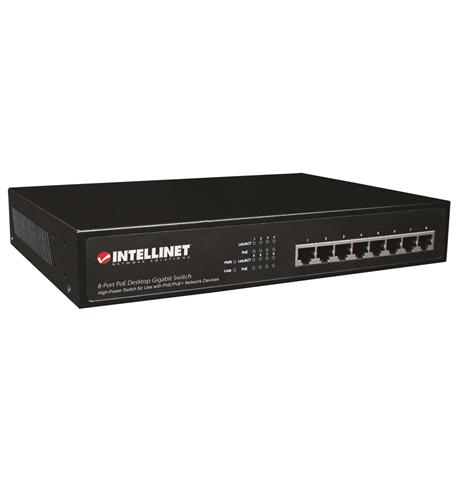

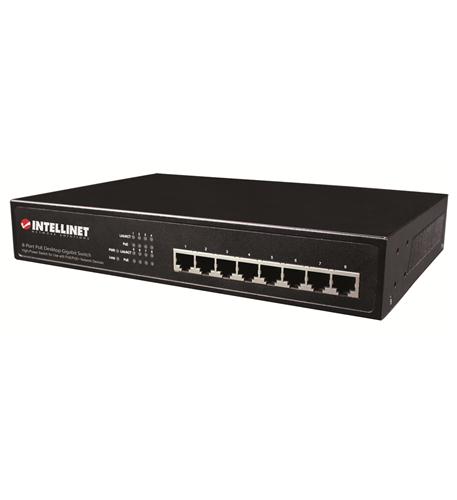

– 8-Port Gigabit Ethernet PoE/PoE+ Desktop Switch
-The Intellinet 8-Port Gigabit Ethernet PoE+ Switch (560641) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
Provides power and data connection for up to eight PoE network devices
– Save time and money by delivering data and power via existing network cables
– 10/100/1000 auto-sensing ports automatically detect optimal network speeds
– IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
– PoE power budget of 140 watts
– Power output up to 30 watts per port*
– Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
– Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
– Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
– All RJ45 ports with Auto-MDIX (auto uplink) support
– Store and forward switching architecture
– IEEE 802.3x flow control for full duplex
– Supports up to 8K MAC address entries
– 256 kBytes buffer memory
– Fanless design ideal for silent operation
– Desktop-size metal case
– Three-Year Warranty
