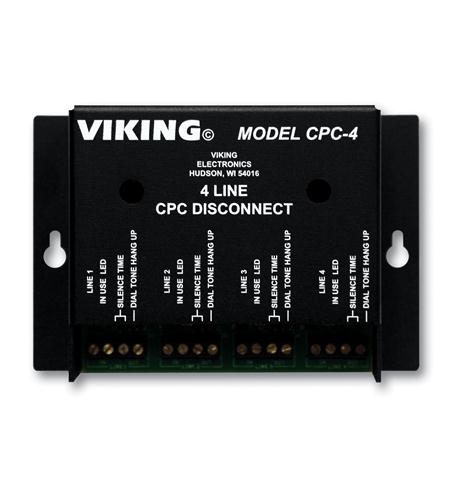

– Viking calling party control – generate CPC disconnect signals on four separate phone lines
– Phone line powered (no AC needed)
– Handle 4 lines in 1 unit
– Generates CPC disconnect on: Return to dial tone (programmable), Busy signal, Reorder (fast busy), Steady silence (programmable)
– LED shows: In use, Audio detected, Generated CPC signal
– Caller ID compatible
– Power: Telephone line powered (20VDC, 20mA minimum)
– Dimensions: 133mm x 89mm x 44mm (5.25″ x 3.5″ x 1.75″)
– Shipping Weight: 1.13Kg (2.5 lbs)
– Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
– CPC Disconnect Time: 1 second nominal
– Connections: 4 position screw terminal block
– VKCPC4
