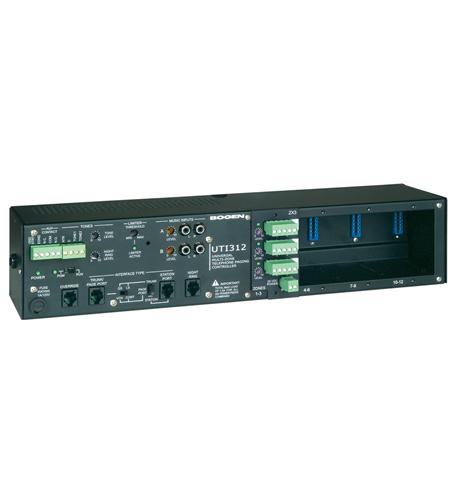

– Bogen multi-zone paging controller
– 3 to 12 Zone
– Provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers
– Compatible with all standard analog port types
– Comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones
– Offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups
– Offers flexible dialing
– Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
– Simple 2-switch interface setup
– Programmable activation of AUX contacts
– C-form contact per zone
– 24V DC,1A internal power supply
– Provides audio drive for up to 150 one-way self-amplified speakers per zone
– Adjustable output limiter with threshold control and active indicator
– Two background music busses, selectable per zone
– Two high-impedance transformer isolated background music inputs
– Stereo combining inputs for background music busses
– All-Call paging zone group
– Auto Select paging zone group
– Override paging (using loop start trunk or page port contact closure activation) with zone group
– Night Ringer (90V and contact closure activation) with zone group
– Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
– Select tone burst, chime, double chime, or slow whoop
– Code Calling with zone group
– 2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
– Non-volatile memory for setup data (no backup battery required)
– Pre-Announce Tone
– Confirmation Tone
– Setup Tone to assist in volume setting
– Pluggable terminal strips
– Microcontroller-based operation
– DTMF programming
– DTMF Block to help suppress DTMF tones over paging system
– Programmable timers control page duration (station and trunk)
– Wall- or Rack-mountable
– 2 Year manufacturer’s warranty
– (+20) Bogen power units
– Accessory modules BG-ZX3 sold separately
– BGUTI312
