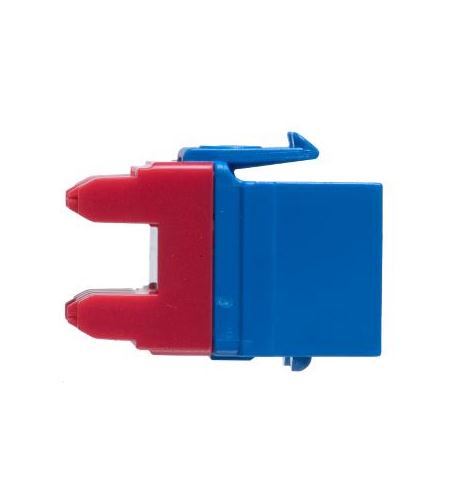

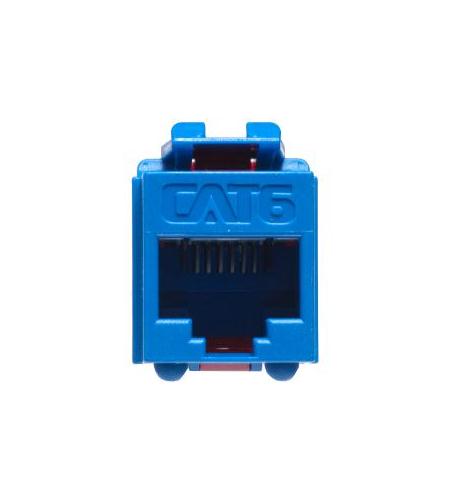

– Blue IC1078F6BL ICC HD Cat 6 Keystone Jack
– CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
– PCB technology provides maximum performance and superior signal quality
– Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
– Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
– Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
– Designed with in-line 110 IDC, in-sequence termination reducing termination time
– One piece termination cap allows for a quick and easy termination
– Includes an integrated TIA-568A/B color wiring diagram
– Backwards compatible to all lower rated category components
– Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
– Installation instructions included
– UL listed
