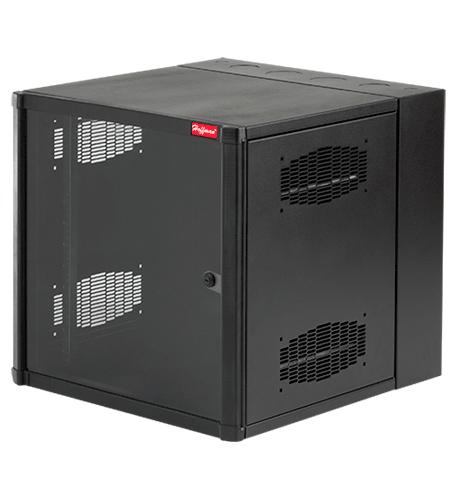

– Specifications:Front Door (window or solid steel):
– Composite frame (injection molded top and bottom with extruded composite sides)
– 140-degree opening door
– Field-reversible (left or right) hinge
– Quarter-turn key lock, two keys included
– Window door is scratch-resistant 1/4-in. tinted safety glass
– Solid door has 16 gauge steel insert with matching black finish
– Center Section:
– Welded 14 gauge steel
– Solid top of center sections provides protection against falling debris
– Ventilated sides (to which fans can be added)
– Self-latching closure connects center section to wall section
– Self-alignment ramp supports center section to wall section
– Heavy duty center-to-rear section hinge with quick-release self-retained hinge pin eases wall installation
– Rack-Mounting Angles:
– 12 gauge, plated steel
– EIA universal spaced 19-in. rack-mounting holes
– RU marked from bottom to top
– Tapped 10-32 holes, 20 mounting screws included
– Rear Wall Section:
– Welded 14 gauge steel
– Radius corners; no sharp edges
– Available with knockouts or gland plates
– Raised pads for accessory mounting
– Cable tie-down points for cable management
– Keyhole mounting holes allow wall section to be mounted over fasteners and eases installation
– Three cable-entry grommets
– Features:
– Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
– Vented sides provide cross flow ventilation to improve heat dissipation
– Round corners; no sharp edges
– Self-grounding, plated steel rack angles fully adjustable within center section
– Wall section provides cable entry and cable management with knockouts or gland plates
– Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
– Self-locking center-to-wall section latches in two locations
– Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
– A full line of accessories is available
– Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
– Center section easily removed from rear section; tool-less one-person installation possible
– Vertical cable manager included in 28-in.-wide models
– Notes:

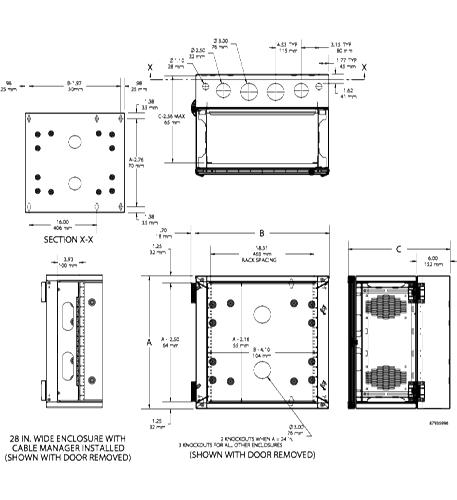

– B dimension does not include wall-to-center section hinge
– Cabinets were tested to 2X the listed load capacities without failure. Contact Hoffman if other loading specifications are required
