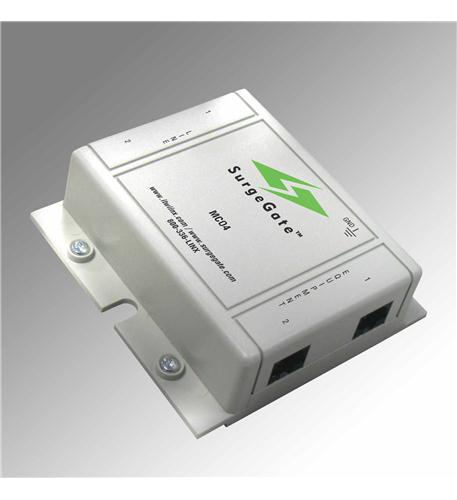

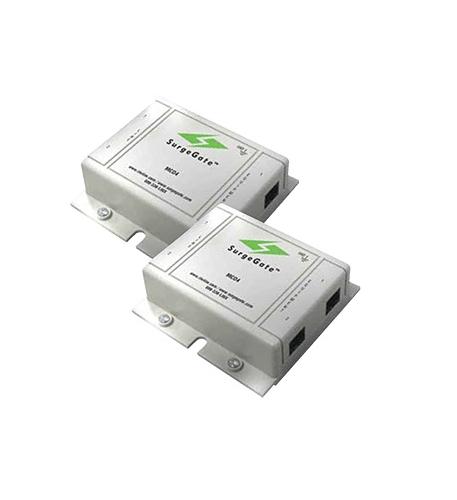

– Analog Station Set and Central Office Line Protector
– Protects up to 4-wires (2-pairs) per jack. Using RJ11/45 connectors (2in/2out, pins 3, 6, 4, 5 protected)
– Auto-Resetting Technology: PTC resistors open when a surge occurs, protecting your equipment, but unlike other fuses, the PTCs close again once the surge passes.
– Expandable modular system
– Applications: Analog and Central Office lines for PBX or KSU
Agency Approval: UL 497A (Secondary)
– Grounding Requirements: Uses Electrical AC Ground
– Recommended Grounding Impedance: <0.5Ohm
– Signal Perfect Circuitry
– Auto-Resetting PTCs: 160 mA (8-10 Ohms)
– Clamping Level: 260V
– Response Time: 1-5 Nanoseconds
– Capacitance: <50pF
– Suppression Modes: Metallic and Longitudinal
– Wires Protected: 4-wires (2-pairs) per jack (pins 3, 6, 4, 5)
– Termination Type: RJ11/45
